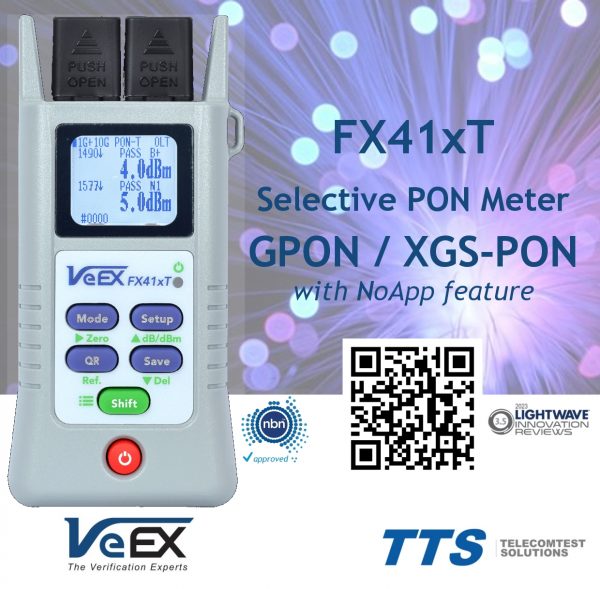

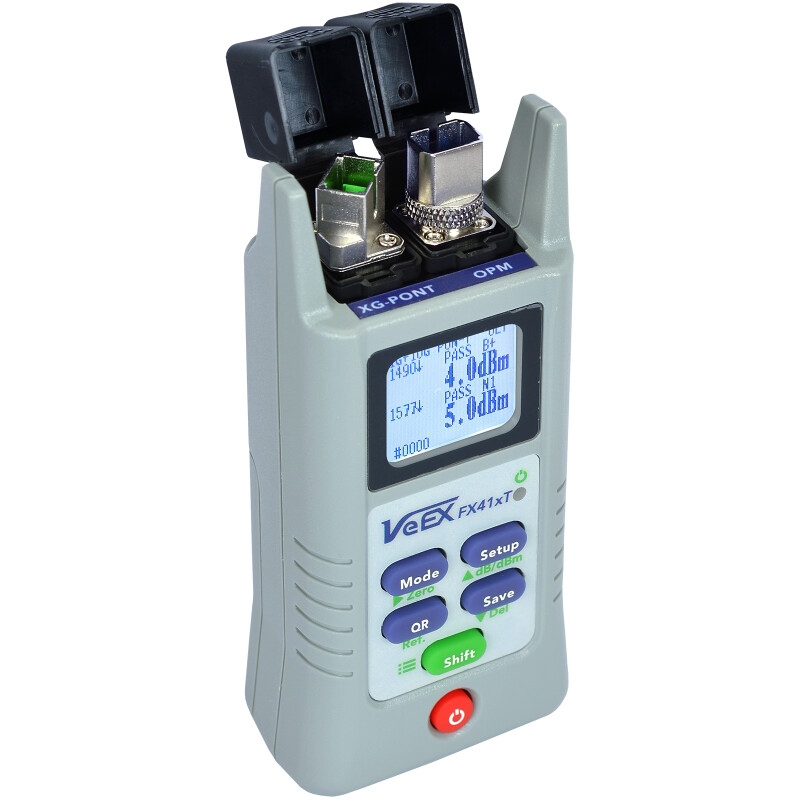

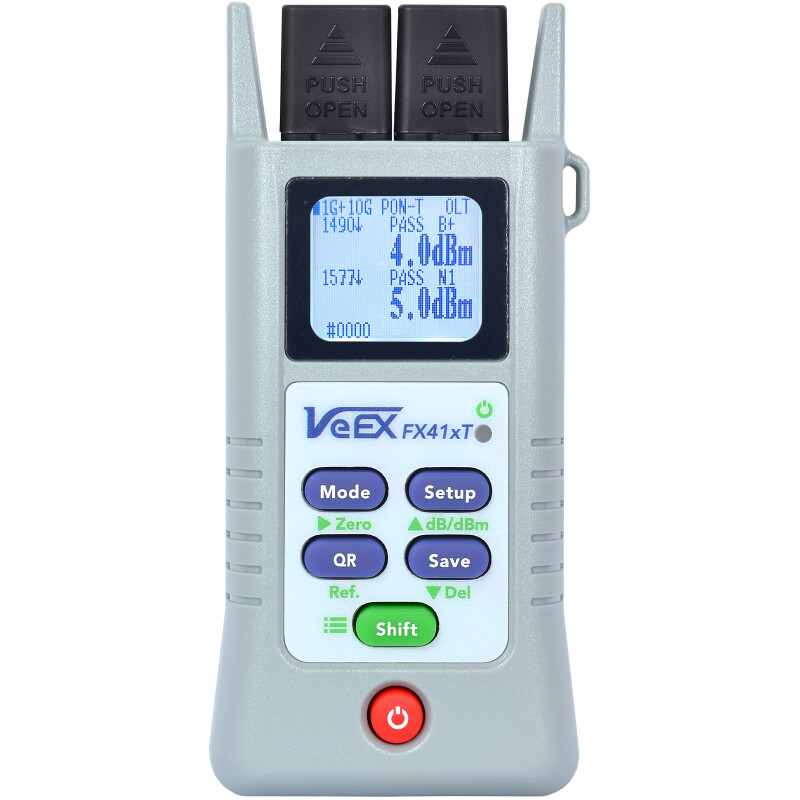

FX41xT G-PON and XGS-PON Meter

FX41xT G-PON and XGS-PON Meter is Selective PON Optical Power Meter for G-PON and XGS-PON

10G Next-Gen and Legacy PON Optical Power Meter

Provides fast, simple, and precise measurement of G-PON and XGS-PON downstream signals. Miniature filters ensure each wavelength is measured accurately. The tester is well suited for installation, service verification, and troubleshooting of co-existent networks, including IEEE based E-PON and 10G-EPON deployments.

Category

Key Features

  • Downstream signal verification for 1G/10G PON networks
  • Simultaneous 1490/1577 nm signal level measurements
  • Pass/Fail indication per ODN Class or User thresholds
  • Alkaline or rechargeable NiMH batteries with Auto- off
  • Save up to 2000 measurements with date and timestamp
  • Save/display test results via NoApp™ QR code for mobile device transfer, post-processing, sharing, and upload
  • Cloud-based NoApp™ service (included) allows for data augmentation via mobile phone or tablet. Secured and always up to date. No installation or updates required.
  • Micro USB interface for 5V DC powering and battery charging
  • High contrast backlit, monochrome display – visible outdoors and indoor with varying light conditions
  • Splash and dust resistant keypad and chassis design
  • Rugged polycarbonate chassis for demanding field conditions
  • Fixed SC/APC connector interface with protective dust caps
  • Visual Fault Locator (VFL) option
  • Broadband Optical Power Meter (OPM) option

Key Specifications

  • Wavelength-selective level measurements:
    • G-PON per ITU-T G.984.2
    • XGS-PON per ITU-T G.9807.1
    • EPON & 10G-EPON per IEEE 802.3av
  • Calibrated PON wavelengths (Downstream):
    • 1490 nm (G-PON)
    • 1577 nm (XGS-PON)
  • Selective Spectral Passband
    • Accurate measurements even in the presence of other wavelengths
    • 1490 nm (1480 to 1500 nm)
    • 1577 nm (1572 to 1582 nm)
  • Display Resolution: 0.1 dB
  • Absolute Accuracy: ± 0.5 dB
  • Communication Interface: Contact-less QR codes
  • Battery Charging Interface: Micro-USB
  • Battery Operating Time: ≥ 75 hours (without backlight)
  •
